Temperature Range:
-40℃ + 180℃ ±1℃
-70℃ + 180℃ ±1℃
Humidity Range: 20% to 98%, ±3% RH
Dew Point Range: +4℃ to +85℃
Climate Range: +25℃ to +85℃
Rate of Change of Temperature:
#3℃ / Minute
#5℃ / Minute
#10℃ / Minute
#15℃ / Minute

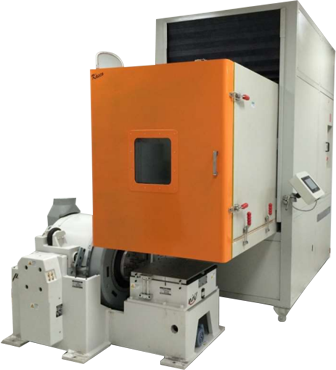

Interface For Shaker:
False floor with round / rectangular cutout for vertical / slip table integration.
Horizontal and vertical movement of chamber for shaker Integration.
| Model No. | Volume (Liters) | W (MM) | D (MM) | H (MM) |
|---|---|---|---|---|
| VTC-200 | 200 | 600 | 600 | 600 |
| VTC-500 | 500 | 750 | 750 | 900 |
| VTC-1000 | 1000 | 1000 | 1000 | 1000 |
*Test Space can be provided as per customer requirement
*Appearance & Design of Chamber may vary depending on the internal dimension
*All performance measured at Room temperature / Ambient of ±25℃ to ±2℃
PID type controllers OR Dual loop Microprocessor programmer, Touchscreen based control system with ethernet facility, Recorder. Air cooled / Water cooled Semi Hermetic type CFC free refrigeration system.
Performance:
Conform IS 9000, JSS 55555, 50101, IEC 68, MIL- STD-202, 810, 883, DEF-STD-133 Specifications.
Options:
Altitude up-to 100000 feet
Walk-in chambers available on request
Ess chambers available on request
